SA9.0A | Littelfuse

Name: TVS diode, Unidirectional, 500 W, 9 V, DO-15, SA9.0A
Brand: Littelfuse
SKU: 74P3735
Price: 0.20 EUR
Availability: OutOfStock

TVS diode, Unidirectional, 500 W, 9 V, DO-15, SA9.0A

Order No.: 74P3735

EAN: 4099891806002

MPN:

SA9.0A

Series: SA

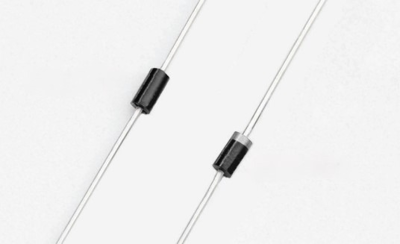

Image may differ

Key Specification:

Pulse power loss 500 W

Rated blocking voltage 9 V

Breakdown voltage 10 V

Continuous power loss 3 W

Show 111 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.2023 € *

Available: 0 pcs.

Leadtime: 14 Weeks **

Add to Cart

Total Price:

0.20 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

TVS Diode, SA9.0A, Littelfuse

The SA9.0A TVS Diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This product is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.

Features

Excellent clamping capability
Typical failure mode is short from over-specified voltage or current
Low incremental surge resistance
Matte tin lead-free plated
Halogen-free
RoHS compliant

Technical specifications

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	CN
Customs tariff number	85411000

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
