P6KE18CA | Littelfuse

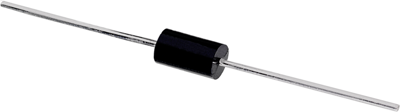

TVS diode, bidirectional, 600 W, 15.3 V, DO-204AC, Littelfuse P6KE18CA
Unit Price (€ / pc.)
0.2535 € *
Standard delivery time from the manufacturer is: 14 Weeks
TVS-Dioden Typ Littelfuse P6KE.
UL-gelistet; Impul-Spitzenverlustleistung: 600 W, Gehäuse: DO204AC, Betriebstemperatur: –55 bis +175 °C. Tabellenangaben: Typ, Nennspannung.
Bidirektionale Ausführung.
Type: P6KE18CA, 18 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated blocking voltage | 15.3 V | |
| Pulse power loss | 600 W | |
| Continuous power loss | 5 W | |
| max. operating temperature | 175 °C | |
| Assembly | THT | |
| Breakdown voltage | 18.9 V | |
| min. operating temperature | -55 °C | |
| Enclosure | DO-204AC | |
| Version | bidirectional |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 4,000 pieces |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
