AQ36-01FTG | Littelfuse

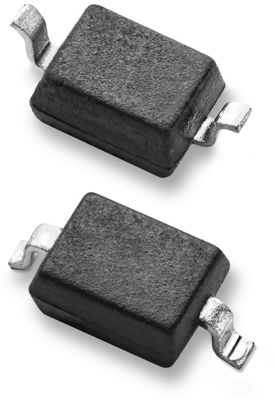

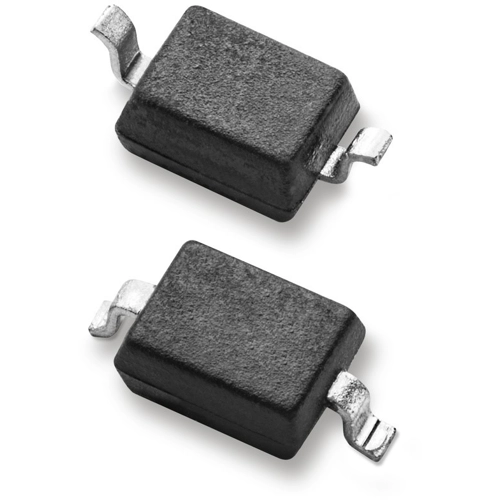

SMD TVS diode, unidirectional, 36 V, SOD323, Littelfuse AQ36-01FTG
Unit Price (€ / pc.)
0.1821 € *
Standard delivery time from the manufacturer is: 13 Weeks
Unidirectional TVS diode, AQ36-01FTG, Littelfuse
This product is designed to replace multilayer varistors (MLVs) in electronic equipment for low speed and DC applications. It will protect any sensitive equipment from damage due to electrostatic discharge (ESD) and other transient events.
Features
- PPAP Capable
- AEC-Q101 qualified
- Halogen free, lead free and RoHS compliant
- Moisture sensitivity level(MSL -1)
Applications
- Mobile phones
- Smart phones
- Smart watches
- Portable medical components
- Automotive applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOD323 | |
| Rated blocking voltage | 36 V | |
| Breakdown voltage | 40 V | |
| Assembly | SMD | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Version | unidirectional |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
