AQ3522-01FTG | Littelfuse

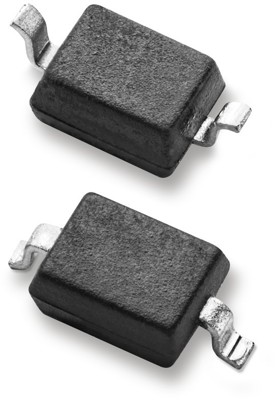

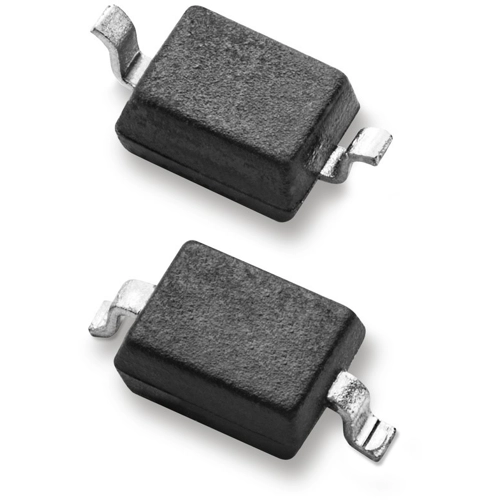

SMD TVS diode, bidirectional, 5 V, SOD323, Littelfuse AQ3522-01FTG
Unit Price (€ / pc.)
0.1785 € *
Standard delivery time from the manufacturer is: 13 Weeks
Bidirectional TVS diode, AQ3522-01FTG, Littelfuse
The AQ3522-01FTG integrates ultra low capacitance diodes to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). This robust component can safely absorb repetitive ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard (Level 4, ±8kV contact discharge) without performance degradation.
Features
- PPAP Capable
- AEC-Q101 qualified
- Moisture sensitivity level(MSL -1)
- Halogen-free, lead-free and RoHS compliant
Applications
- Ultra-high speed data lines
- LVDS interfaces
- Automotive application
- Consumer, mobile and portable electronics
- Tablet PC and external storage with high speed interfaces
- Applications requiring high ESD performance in small packages
- USB 3.1, 3.0, 2.0
- HDMI 2.0, 1.4a, 1.3
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOD323 | |
| Rated blocking voltage | 5 V | |
| Breakdown voltage | 8.5 V | |
| Assembly | SMD | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Version | bidirectional | |
| Capacity | 0.15 pF |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
