AQ3102-02HTG | Littelfuse

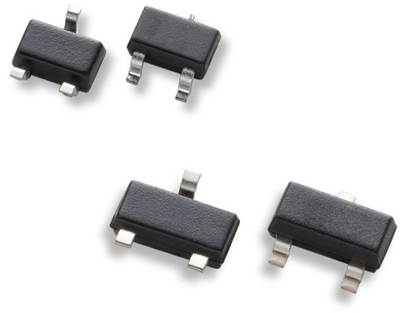

SMD TVS diode, bidirectional, 5 V, SOT23-3L, Littelfuse AQ3102-02HTG
Order No.: 74P2946
EAN: 4099891798116
MPN:
AQ3102-02HTG
Unit Price (€ / pc.)
0.4046 € *
Standard delivery time from the manufacturer is: 11 Weeks
Low capacitance diode, AQ3102-02HTG, Littelfuse
The AQ3102-02HTG integrates 2 channels of low capacitance steering diodes and an additional zener diode to provide protection for automotive electronics equipment that may experience destructive electrostatic discharges (ESD). It can safely absorb repetitive ESD strikes above the maximum contact level specified in IEC 61000-4-2 international standard (Level 4, ±8kV contact discharge) without performance degradation.
Features
- Low capacitance of 1pF (TYP) per I/O
- AEC-Q101 qualified
- Moisture sensitivity level(MSL -1)
- Halogen-free, lead-free and RoHS compliant
Applications
- LCD/PDP TVs
- External storages
- DVD/Blu-ray Players
- Smartphones
- Digital cameras
- Ultrabooks, Notebooks
- Automotive applications
- Wearable technology
Technical specifications
| Rated blocking voltage | 5 V | |
| Assembly | SMD | |
| Enclosure | SOT23-3L | |
| Capacity | 1 pF | |
| Version | bidirectional | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
