AQ24CANA-02HTG | Littelfuse

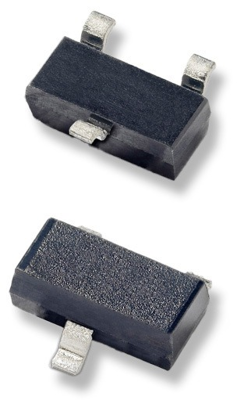

SMD TVS diode, bidirectional, 24 V, SOT23-3L, Littelfuse AQ24CANA-02HTG
Order No.: 74P2941
EAN: 4099891798062
MPN:
AQ24CANA-02HTG
Unit Price (€ / pc.)
0.2344 € *
Standard delivery time from the manufacturer is: 11 Weeks
TVS Diode array, AQ24CANA-02HTG, Littelfuse
The AQ24CANA-02HTG TVS Diode Array is designed to protect automotive Controller Area Network (CAN) lines from damage due to electrostatic discharge (ESD), electrical fast transient (EFT), and other overvoltage transients.It can absorb repetitive ESD strikes above the maximum level specified in IEC 61000-4-2 international standard without performance degradation and safely dissipate 5A of 8/20µs surge current (IEC 61000-4-5 2nd Edition) with very low clamping voltages.
Features
- PPAP Capable
- Low clamping voltage
- Low leakage current
- Halogen-free, lead-free and RoHS compliant
Applications
- Automotive applications
- Electronic control units
- PowerTrain control units
- Telematics and connectivity
- LED Lighting control
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated blocking voltage | 24 V | |
| Assembly | SMD | |
| Enclosure | SOT23-3L | |
| Capacity | 15 pF | |
| Version | bidirectional | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 150 °C | |
| Breakdown voltage | 26.7 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
