AQ22-01FTG | Littelfuse

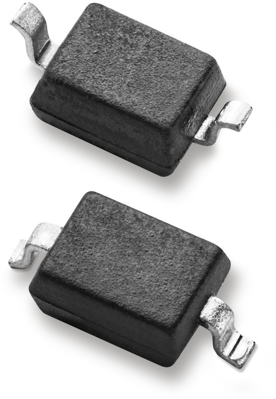

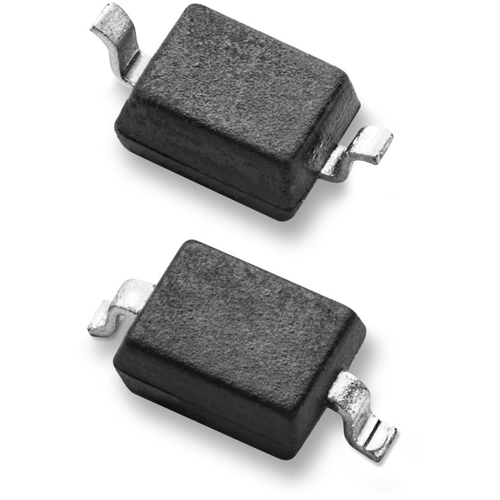

SMD TVS diode, unidirectional, 22 V, SOD323, Littelfuse AQ22-01FTG
Unit Price (€ / pc.)
0.1571 € *
Standard delivery time from the manufacturer is: 13 Weeks
Unidirectional TVS diode, AQ22-01FTG, Littelfuse
The AQ22-01FTG discrete unidirectional TVS Diode is designed for use in electronic equipment for low speed and DC applications. It will protect any sensitive equipment from damage due to electrostatic discharge (ESD) and other transient events. It can safely absorb repetitive ESD strikes at ±30kV (contact discharge, IEC 61000-4-2) without performance degradation and safely dissipate 27A of 8/20μs induced surge current (IEC 61000-4-5 2nd edition) with very low clamping voltages.
Features
- Low clamping voltage
- Low leakage current
- Halogen free, lead free and RoHS compliant
- Moisture sensitivity level(MSL -1)
Applications
- Switches/Buttons
- Test equipment/Instrumentation
- Medical equipment
- Notebooks/Desktops/Servers
- Automotive applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | unidirectional | |
| Rated blocking voltage | 22 V | |
| Breakdown voltage | 23 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 150 °C | |
| Assembly | SMD | |
| Enclosure | SOD323 | |
| Capacity | 160 pF |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
