AQ1003-01LTG | Littelfuse

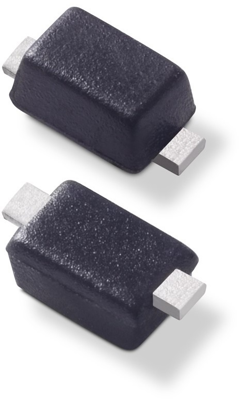

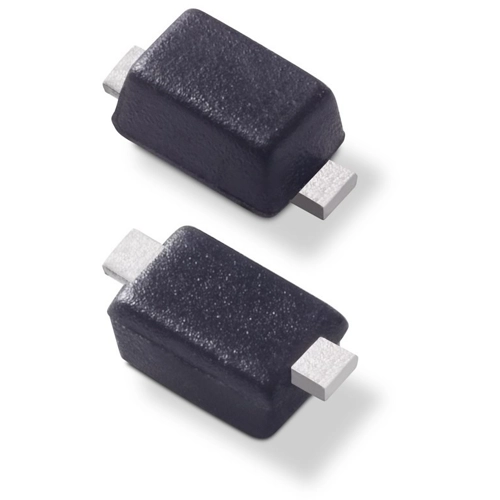

SMD TVS diode, unidirectional, 5 V, SOD523, Littelfuse AQ1003-01LTG
Unit Price (€ / pc.)
0.1654 € *
Standard delivery time from the manufacturer is: 11 Weeks
Unidirectional discrete TVS, AQ1003-01LTG, Littelfuse
This discrete TVS diode is fabricated in a proprietary silicon avalanche technology that protects electronic equipment I/O pins from destructive electrostatic discharges (ESDs). This robust TVS can withstand repetitive contact or air ESD discharge events at ± 30 kV levels without suffering any performance degradation.
Features
- PPAP Capable
- AEC-Q101 qualified
- Halogen free, lead free and RoHS compliant
- Moisture sensitivity level(MSL -1)
Applications
- Mobile phones
- Smart phones
- Digital cameras
- Portable medical components
- Automotive applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOD523 | |
| Rated blocking voltage | 5 V | |
| Breakdown voltage | 6 V | |
| Assembly | SMD | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Version | unidirectional | |
| Capacity | 30 pF |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
