AQ05C-01FTG | Littelfuse

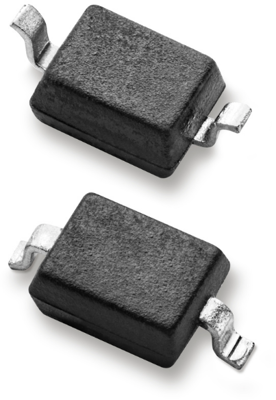

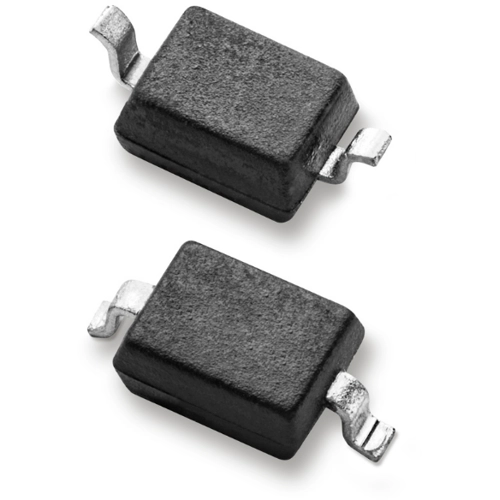

SMD TVS diode, bidirectional, 450 W, 5 V, SOD323, Littelfuse AQ05C-01FTG
Unit Price (€ / pc.)
0.2071 € *
Standard delivery time from the manufacturer is: 13 Weeks
Bidirectional TVS Diode, AQ05C-01FTG, Littelfuse
This bidirectional TVS Diode is designed to replace multilayer varistors (MLVs) in electronic equipment for low speed and DC applications. It will protect any sensitive equipment from damage due to electrostatic discharge (ESD) and other transient events.
Features
- Low clamping voltage
- PPAP capable
- Low leakage current
- AEC-Q101 qualified
- Halogen free, lead free and RoHS complian
Applications
- Switches/Buttons
- Test equipment /Instrumentation
- Medical equipment
- Notebooks/Desktops/Servers
- Automotive applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | bidirectional | |
| Pulse power loss | 450 W | |
| Rated blocking voltage | 5 V | |
| Breakdown voltage | 6 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 150 °C | |
| Assembly | SMD | |
| Enclosure | SOD323 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
