AQ05-01FTG | Littelfuse

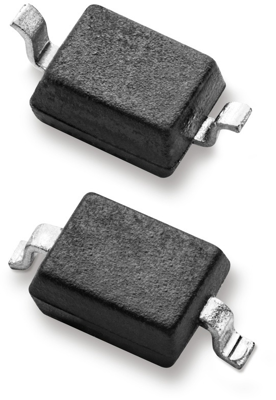

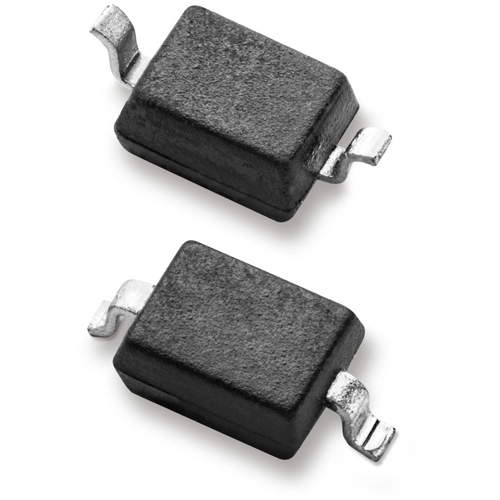

SMD TVS diode, unidirectional, 5 V, SOD323, Littelfuse AQ05-01FTG
Unit Price (€ / pc.)
0.1821 € *
Standard delivery time from the manufacturer is: 13 Weeks
Unidirectional TVS Diode, AQ05-01FTG, Littelfuse
This unidirectional TVS Diode is designed to replace multilayer varistors (MLVs) in electronic equipment for low speed and DC applications. It will protect any sensitive equipment from damage due to electrostatic discharge (ESD) and other transient events.
Features
- Low clamping voltage
- PPAP capable
- Low leakage current
- AEC-Q101 qualified
- Halogen free, lead free and RoHS complian
Applications
- Switches/Buttons
- Test equipment /Instrumentation
- Medical equipment
- Computer peripherals
- Automotive applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | unidirectional | |
| Assembly | SMD | |
| Enclosure | SOD323 | |
| min. operating temperature | -40 °C | |
| Rated blocking voltage | 5 V | |
| Breakdown voltage | 6 V | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
