5.0SMDJ36CA-T7 | Littelfuse
TVS Diode, 5.0SMDJ36CA-T7AH
Unit Price (€ / pc.)
1.3685 € *
Available: 0 pcs.
Leadtime: 13 Weeks **

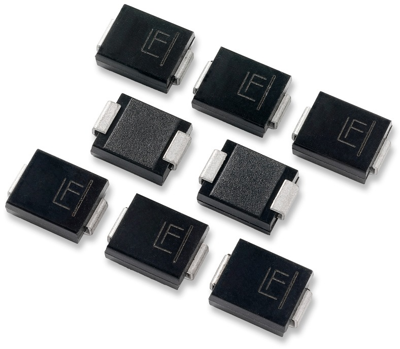

TVS Diode, 5.0SMDJ36CA-T7, Littelfuse
The 5.0SMDJ36CA-T7 is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events, with 5000W peak pulse power capability at 10/1000μs waveform, excellent clamping capability and low incremental surge resistance.
Features
- Typical failure mode is short from over-specified voltage or current
- Built-in strain relief
- Glass passivated chip junction
- Matte tin lead–free plated
- Halogen free and RoHS compliant
Applications
- TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications
Technical specifications
| Version | Bidirectional | |
| Continuous power loss | 6.5 W | |
| Breakdown voltage | 40 V | |
| Enclosure | DO-214AB | |
| Pulse power loss | 5 kW | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -65 °C | |
| Assembly | SMD | |
| Rated blocking voltage | 36 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
