1KSMB33A | Littelfuse

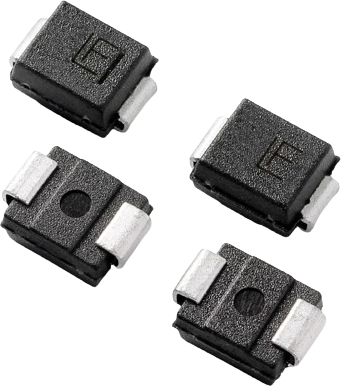

SMD TVS diode, unidirectional, 1 kW, 28.2 V, DO-214AA, Littelfuse 1KSMB33A
Unit Price (€ / pc.)
0.3332 € *
Standard delivery time from the manufacturer is: 12 Weeks
TVS Diode, 1KSMB33A, Littelfuse
The 1KSMB33A is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events, with 1000W peak pulse power capability at 10/1000μs waveform, excellent clamping capability and low incremental surge resistance. Ideal for surface-mounted applications to optimize board space.
Features
- Low profile package
- Typical failure mode is short from over-specified voltage or current
- Built-in strain relief
- Glass passivated chip junction
- Halogen free and RoHS compliant
Applications
- TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications
Technical specifications
| Continuous power loss | 5 W | |
| Rated blocking voltage | 28.2 V | |
| Assembly | SMD | |
| Enclosure | DO-214AA | |
| Pulse power loss | 1 kW | |
| Version | unidirectional | |
| min. operating temperature | -65 °C | |
| max. operating temperature | 150 °C | |
| Breakdown voltage | 31.4 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
