1.5SMC540A | Littelfuse

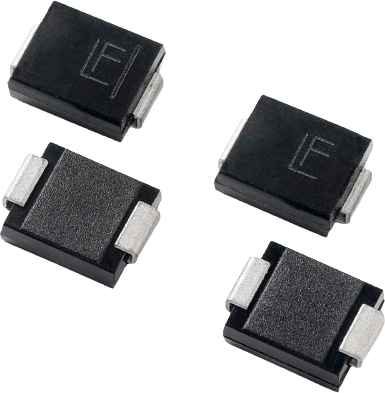

SMD TVS diode, unidirectional, 2 kW, 486 V, DO-214AB, Littelfuse 1.5SMC540A
Unit Price (€ / pc.)
0.5355 € *
Available in 4 Days: 6,000 pcs. - if ordered today
TVS Diode, 1.5SMC540A, Littelfuse
The 1.5SMC540A is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events, with excellent clamping capability and low incremental surge resistance. Ideal for surface-mounted applications to optimize board space.
Features
- Low profile package
- Built-in strain relief
- Typical failure mode is short from over-specified voltage or current
- Halogen free and RoHS compliant
Applications
- TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Continuous power loss | 6.5 W | |
| Enclosure | DO-214AB | |
| max. operating temperature | 150 °C | |
| Assembly | SMD | |
| min. operating temperature | -65 °C | |
| Version | unidirectional | |
| Rated blocking voltage | 486 V | |
| Breakdown voltage | 513 V | |
| Pulse power loss | 2 kW |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
