1.5SMB51A | Littelfuse
TVS Diode, 1.5SMB51AAH
Unit Price (€ / pc.)
0.2975 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

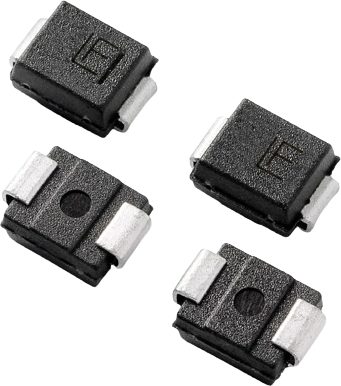

TVS Diode, 1.5SMB51A, Littelfuse
The 1.5SMB51A is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events, with 1500W peak pulse power capability at 10/1000μs waveform in DO-214AA package, and high current density in a small footprint.
Features
- For surface mounted applications to optimize board space
- Low profile package
- Typical failure mode is short from over-specified voltage or current
- Built-in strain relief
- Glass passivated chip junction
- Excellent clamping capability
- Low incremental surge resistance
Applications
- TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications
Technical specifications
| Version | Unidirectional | |
| Continuous power loss | 5 W | |
| Breakdown voltage | 48.5 V | |
| Enclosure | DO-214AA | |
| Pulse power loss | 1.5 kW | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -65 °C | |
| Assembly | SMD | |
| Rated blocking voltage | 43.6 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
