1.5KE36A | Littelfuse

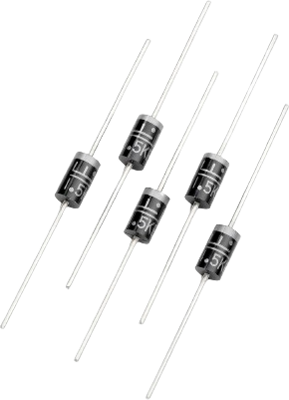

TVS diode, unidirectional, 1.5 kW, 30.8 V, DO-201, Littelfuse 1.5KE36A
Unit Price (€ / pc.)
0.7854 € *
Available: 100 pcs.
Total Price:
0.79 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7854 €
10 pcs.
0.5712 €
100 pcs.
0.4879 €
500 pcs.
0.4165 €
1000 pcs.
0.3808 €
*incl. VAT plus shipping costs
Subject to prior sale
TVS Diode, 1.5KE36A, Littelfuse
The 1.5KE36A is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Features
- Glass passivated chip junction in DO-201 package
- Fast response time: typically less than 1.0ps from 0 Volts to BV min
- Excellent clamping capability
- Typical failure mode is short from over-specified voltage or current
- ESD protection of data lines in accordance with IEC 61000-4-2
- Low incremental surge resistance
- Halogen free and RoHS compliant
Applications
- TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Continuous power loss | 6.5 W | |
| min. operating temperature | -50 °C | |
| Breakdown voltage | 34.2 V | |
| max. operating temperature | 175 °C | |
| Version | unidirectional | |
| Assembly | THT | |
| Pulse power loss | 1.5 kW | |
| Rated blocking voltage | 30.8 V | |
| Enclosure | DO-201 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
