SK065KTP | Littelfuse

SCR, 1 kV (RRM), TO-218AC, Littelfuse SK065KTP

Order No.: 74P0699
EAN: 4099891775643
MPN:
SK065KTP
Series: Sxx65x
SK065KTP Littelfuse Thyristoren,Diacs,Triacs,Quadracs

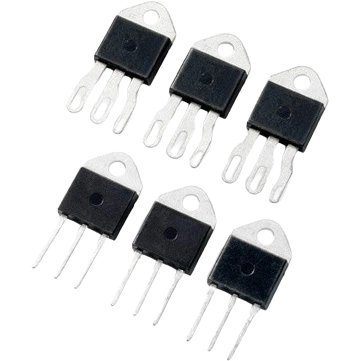

Image may differ
Unit Price (€ / pc.)
8.33 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
2,082.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
250 pcs.
8.33 €

SCR, SK065KTP, LITTELFUSE

Excellent unidirectional switch for phase control applications such as heating and motor speed controls. Standard phase control SCR is triggered with a few milliamperes of current at less than 1.5V potential.

Features

  • RoHS-compliant
  • Glass – passivated junctions

Applications

  • Typical applications are AC solid-state switches, industrial power tools, exercise equipment, white goods and commercial appliances
Technical specifications
Gate trigger voltage 2 V
Gate trigger current 50 mA
Assembly THT
Enclosure TO-218AC
Version SCR
min. operating temperature -40 °C
Voltage V RRM (peak reverse voltage) 1 kV
max. operating temperature 125 °C
max. holding current 80 mA
Number of pins 3
Logistics
Country of origin CN
Customs tariff number 85413000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
