S8025LTP | Littelfuse

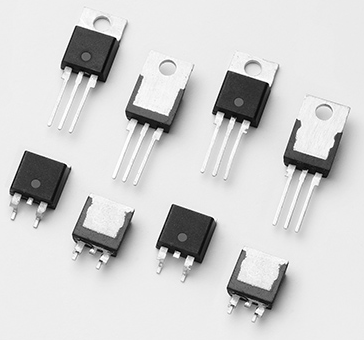

SCR, 800 V (RRM), 16 A, TO-220, Littelfuse S8025LTP
Unit Price (€ / pc.)
3.3915 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
3.39 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3915 €
10 pcs.
3.2844 €
25 pcs.
3.1654 €
100 pcs.
2.9393 €
250 pcs.
2.8322 €
*incl. VAT plus shipping costs
Subject to prior sale
Brand thyristor, S8025LTP, Littelfuse
The S8025LTP is a brand thyristor unidirectional switch for phase control applications such as heating and motor speed controls. Standard phase control SCRs is triggered with few milliamperes of current at less than 1.5V potential.
Features
- RoHS-compliant
- Glass - passivated junctions
Applications
- Industrial power tools
- Exercise equipment
- White goods
- Commercial appliances
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Gate trigger current | 35 mA | |
| Enclosure | TO-220 | |
| Voltage V RRM (peak reverse voltage) | 800 V | |
| Voltage slew rates dV/dt | 400 V/s | |
| Assembly | THT | |
| Max. current | 16 A | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Version | SCR | |
| Number of pins | 3 | |
| max. holding current | 50 mA | |
| Rated current | 20 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85413000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
