S6S1RP | Littelfuse

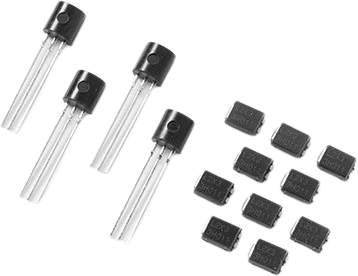

SCR, 600 V (RRM), Compak, Littelfuse S6S1RP
Unit Price (€ / pc.)
0.9520 € *
Standard delivery time from the manufacturer is: 16 Weeks
SCR, S6S1RP, LITTELFUSE
Excellent unidirectional switch for phase control applications such as heating and motor speed controls. Sensitive gate SCR is easily triggered with microAmps of current as furnished by sense coils, proximity switches, and microprocessors.
Features
- Glass - passivated junctions
- RoHS compliant
Applications
- Typical applications are capacitive discharge systems for strobe lights and gas engine ignition. Also controls for power tools, home/brown goods and white goods appliances
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -40 °C | |
| Rated current | 0.8 A | |
| max. operating temperature | 110 °C | |
| Gate trigger current | 0.012 mA | |
| Version | SCR | |
| Assembly | SMD | |
| Voltage slew rates dV/dt | 10 V/s | |
| max. holding current | 5 mA | |
| Gate trigger voltage | 0.8 V | |
| Enclosure | Compak | |
| Number of pins | 3 | |
| Voltage V RRM (peak reverse voltage) | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85413000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
