S4S3RP | Littelfuse

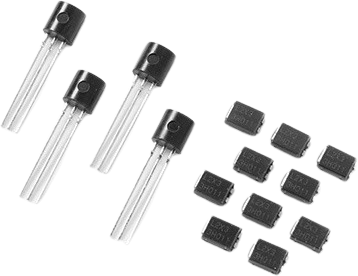

SCR, 400 V (RRM), Compak, Littelfuse S4S3RP
Unit Price (€ / pc.)
0.6426 € *
Standard delivery time from the manufacturer is: 16 Weeks
Thyristor, S4S3RP, LITTELFUSE
Excellent unidirectional switch for phase control applications such as heating and motor speed controls. Sensitive gate SCR is easily triggered with microAmps of current as furnished by sense coils, proximity switches, and microprocessors.
Features
- Glass - passivated junctions
- RoHS compliant
Applications
- Typical applications are capacitive discharge systems for strobe lights and gas engine ignition. Also controls for power tools, home/brown goods and white goods appliances
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Gate trigger current | 0.5 mA | |
| Gate trigger voltage | 0.8 V | |
| Enclosure | Compak | |
| Voltage V RRM (peak reverse voltage) | 400 V | |
| Voltage slew rates dV/dt | 40 V/s | |
| Assembly | SMD | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -40 °C | |
| Version | SCR | |
| Number of pins | 3 | |
| max. holding current | 8 mA | |
| Rated current | 0.8 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85413000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
