S4S2RP | Littelfuse

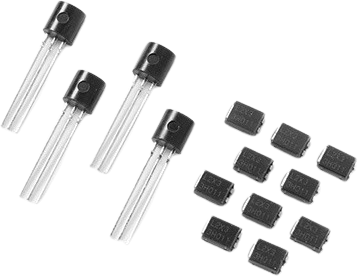

SCR, 400 V (RRM), Compak, Littelfuse S4S2RP
Unit Price (€ / pc.)
0.7735 € *
Standard delivery time from the manufacturer is: 16 Weeks
SCR, S4S2RP, LITTELFUSE
Excellent unidirectional switch for phase control applications such as heating and motor speed controls. Sensitive gate SCR is easily triggered with microAmps of current as furnished by sense coils, proximity switches, and microprocessors.
Features
- Glass - passivated junctions
- RoHS compliant
Applications
- Typical applications are capacitive discharge systems for strobe lights and gas engine ignition. Also controls for power tools, home/brown goods and white goods appliances
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Voltage slew rates dV/dt | 25 V/s | |
| max. holding current | 5 mA | |
| Enclosure | Compak | |
| Number of pins | 3 | |
| max. operating temperature | 110 °C | |
| Assembly | SMD | |
| Gate trigger voltage | 0.8 V | |
| min. operating temperature | -40 °C | |
| Gate trigger current | 0.05 mA | |
| Version | SCR | |
| Rated current | 0.8 A | |
| Voltage V RRM (peak reverse voltage) | 400 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85413000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
