Q6010LTHTP | Littelfuse

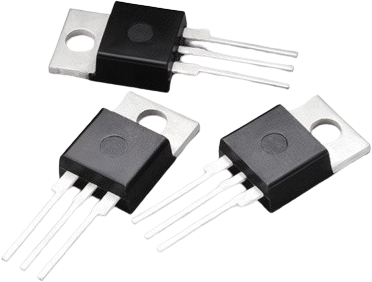

Quadrac, 600 V (RRM), 10 A, TO-220AB, Littelfuse Q6010LTHTP
Unit Price (€ / pc.)
2.4871 € *
Standard delivery time from the manufacturer is: 17 Weeks
Triac, Q6010LTHTP, Littelfuse
The Quadrac device is a bidirectional AC switch and is gate controlled for either polarity of main terminal voltage. Its primary purpose is for AC switching and phase control applications such as speed controls, temperature modulation controls, and lighting controls where noise immunity is required.
Features
- RoHS compliant
- Glass - passivated junctions
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of pins | 3 | |
| Assembly | THT | |
| Version | quadrac | |
| max. operating temperature | 125 °C | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| Enclosure | TO-220AB | |
| max. holding current | 60 mA | |
| Voltage slew rates dV/dt | 600 V/s | |
| min. operating temperature | -40 °C | |
| Max. current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85413000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
