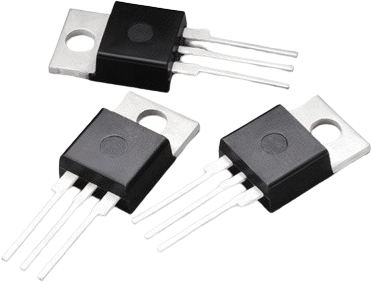

Q4008LTTP | Littelfuse
Quadrac, 400 V (RRM), 8 A, TO-220AB, Littelfuse Q4008LTTP
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.8921 € *
Available in 4 Days: 1,490 pcs. - if ordered today
Triac, Q4008LTTP, Littelfuse
The Quadrac device is a bidirectional AC switch and is gate controlled for either polarity of main terminal voltage. Its primary purpose is for AC switching and phase control applications such as speed controls, temperature modulation controls, and lighting controls where noise immunity is required.
Features
- RoHS compliant
- Glass - passivated junctions
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | TO-220AB | |
| Version | quadrac | |
| Number of pins | 3 | |
| max. holding current | 60 mA | |
| Voltage V RRM (peak reverse voltage) | 400 V | |
| Max. current | 8 A | |
| Voltage slew rates dV/dt | 120 V/s | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85413000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
