Q4006LTHTP | Littelfuse

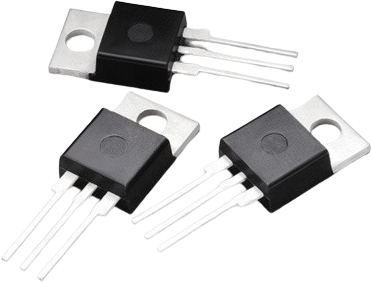

Quadrac, 400 V (RRM), 6 A, TO-220AB, Littelfuse Q4006LTHTP
Unit Price (€ / pc.)
1.8088 € *
Available: 0 pcs.
Leadtime: 17 Weeks **
Triac, Q4006LTHTP, Littelfuse
The Quadrac device is a bidirectional AC switch and is gate controlled for either polarity of main terminal voltage. Its primary purpose is for AC switching and phase control applications such as speed controls, temperature modulation controls, and lighting controls where noise immunity is required.
Features
- RoHS compliant
- Glass - passivated junctions
Technical specifications
| Assembly | THT | |
| Enclosure | TO-220AB | |
| Max. current | 6 A | |
| Version | quadrac | |
| min. operating temperature | -40 °C | |
| Voltage V RRM (peak reverse voltage) | 400 V | |
| max. operating temperature | 125 °C | |
| max. holding current | 50 mA | |
| Voltage slew rates dV/dt | 450 V/s | |
| Number of pins | 3 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85413000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
