MCR12DCMT4G | Littelfuse

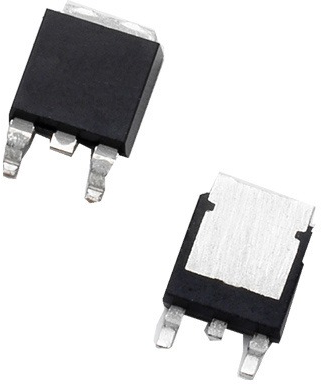

Thyristor, 600 V (RRM), TO-252, Littelfuse MCR12DCMT4G
Unit Price (€ / pc.)
1.3090 € *
Standard delivery time from the manufacturer is: 11 Weeks
Thyristor, MCR12DCMT4G, Littelfuse
The silicon controlled rectifier is designed for high volume, low cost, industrial and consumer applications such as motor control, process control, temperature, light and speed control.
Features
- Small size
- Passivated die for reliability and uniformity
- Low level triggering and holding characteristics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 125 °C | |
| Gate trigger current | 20 mA | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| max. holding current | 40 mA | |
| min. operating temperature | -40 °C | |
| Gate trigger voltage | 1 V | |
| Number of pins | 3 | |
| Voltage slew rates dV/dt | 200 V/s | |
| Assembly | SMD | |
| Enclosure | TO-252 | |
| Version | thyristor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | VN |
| Customs tariff number | 85413000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
