MCMA650MT1800NKD | Littelfuse

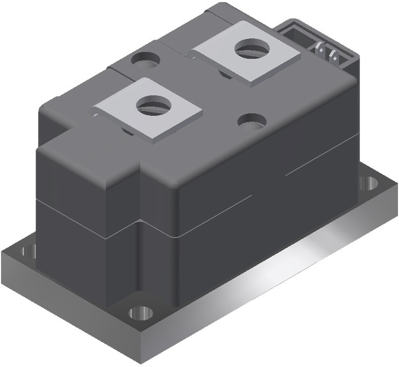

Thyristor module, 1800 V (RRM), Y1-CU, Littelfuse MCMA650MT1800NKD
Order No.: 74P0414
EAN: 4099891772796
MPN:
MCMA650MT1800NKD
Unit Price (€ / pc.)
167.6948 € *
Standard delivery time from the manufacturer is: 20 Weeks
Triac, MCMA650MT1800NKD, LITTELFUSE
Triac with an isolation voltage of 4800 V, long-term stability of blocking currents and voltages, advanced power cycling, and copper base plate with internally DCB isolation.
Features
- Planar passivated chip
- Triac for line frequency
- Three quadrants operation - QI - QIII
- Industry standard outline
- RoHS compliant
- Soldering pins for PCB mounting
Applications
- Line rectifying 50/60 Hz
- Softstart AC motor control
- DC motor control
- Power converter
- AC power control
- Lighting and temperature control
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C | |
| Gate trigger current | 220 mA | |
| Version | Thyristor module | |
| Assembly | chassis mounting | |
| Voltage slew rates dV/dt | 1000 V/s | |
| max. holding current | 150 mA | |
| Gate trigger voltage | 2 V | |
| Enclosure | Y1-CU | |
| Number of pins | 5 | |
| Voltage V RRM (peak reverse voltage) | 1800 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85413000 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
