MCMA450UH1600TEH | Littelfuse

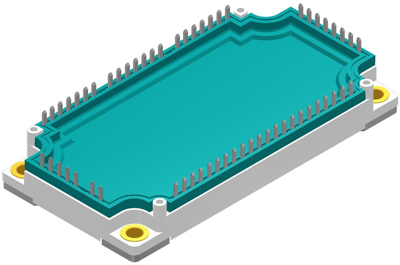

Thyristor module, 1600 V (RRM), E3-Pack, Littelfuse MCMA450UH1600TEH
Order No.: 74P0407
EAN: 4099891772727
MPN:
MCMA450UH1600TEH
Unit Price (€ / pc.)
140.5866 € *
Standard delivery time from the manufacturer is: 22 Weeks
Thyristor module, MCMA450UH1600TEH, LITTELFUSE
Thyristor module rectifier bridge with an isolation voltage of 4300 V, advanced power cycling, very low forward voltage drop, very low leakage current, and copper base plate with internally DCB isolation.
Features
- Package with DCB ceramic
- Improved temperature and power cycling
- Planar passivated chip
- Industry standard outline
- RoHS compliant
- Soldering pins for PCB mounting
Applications
- 3 - half-controlled rectifier for drive inverters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 125 °C | |
| Gate trigger current | 150 mA | |
| Voltage V RRM (peak reverse voltage) | 1600 V | |
| max. holding current | 200 mA | |
| min. operating temperature | -40 °C | |
| Gate trigger voltage | 1.5 V | |
| Number of pins | 61 | |
| Voltage slew rates dV/dt | 1000 V/s | |
| Assembly | chassis mounting | |
| Enclosure | E3-Pack | |
| Version | Thyristor module |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85413000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
