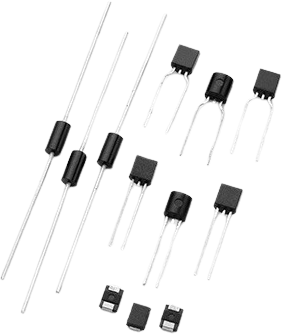

K2002G | Littelfuse
Thyristor, K2002GAH
Order No.: 74P0190
EAN: 4099891770556
MPN:
K2002G
Unit Price (€ / pc.)
1.2138 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Thyristor, K2002G, Littelfuse
The SIDAC is a silicon bilateral voltage triggered switch. Upon application of a voltage exceeding the SIDAC breakover voltage point, the SIDAC switches on through a negative resistance region to a low on-state voltage. Conduction continues until the current is interrupted or drops below the minimum holding current of the device.
Features
- AC circuit oriented
- RoHS compliant
Applications
- Suitable for high voltage power supplies, natural gas igniters, high-pressure sodium lamps, and xenon flash ignition
Technical specifications
| Number of pins | 2 | |
| Enclosure | DO-15 | |
| max. holding current | 150 mA | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Voltage slew rates dV/dt | 1500 V/s |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85413000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
