CS20-25MO1F | Littelfuse

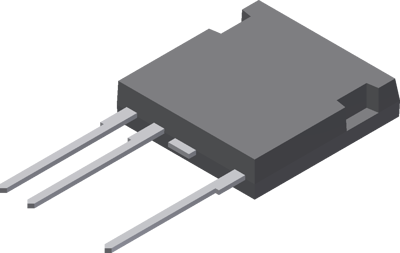

Thyristor, 2500 V (RRM), i4-Pac, Littelfuse CS20-25MO1F
Order No.: 74P0083
EAN: 4099891769482
MPN:
CS20-25MO1F
Unit Price (€ / pc.)
43.2446 € *
Standard delivery time from the manufacturer is: 40 Weeks
Thyristor, CS20-25MO1F, Littelfuse
A high voltage phase control thyristor with an isolation voltage 3000 V, for line frequency, chip technology for long term stability, soldering pins for PCB mounting, DCB ceramic on the backside, and reduced weight.
Features
- Isolated back surface
- Enlarged creepage towards heatsink
- Enlarged creepage between high voltage pins
- Application friendly pinout
- High reliability
- Industry standard outline
- RoHS compliant
- Epoxy meets UL 94 V-0
- Advanced power cycling
Applications
- Controlled rectifiers
- Power supplies
- Drives
- AC switches
- Capacitor discharge control
- Flash tubes
- X-ray and laser generators
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | thyristor | |
| Voltage slew rates dV/dt | 2500 V/s | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C | |
| Gate trigger current | 250 mA | |
| Number of pins | 3 | |
| Voltage V RRM (peak reverse voltage) | 2500 V | |
| Enclosure | i4-Pac | |
| Gate trigger voltage | 2.3 V | |
| Assembly | THT | |
| max. holding current | 150 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85413000 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
