CLA5E1200PZ-TRL | Littelfuse

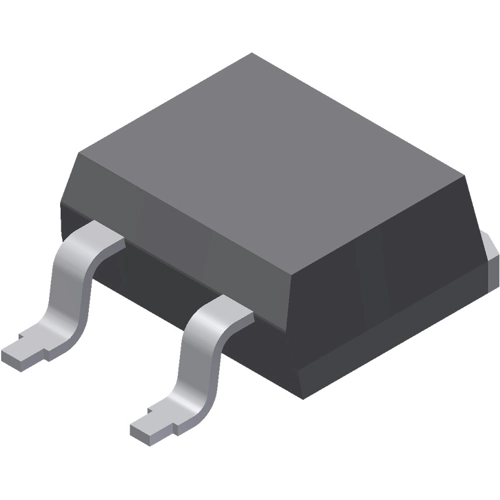

Thyristor, 1200 V (RRM), 5 A, TO-263AB, Littelfuse CLA5E1200PZ-TRL
Order No.: 74P0045
EAN: 4099891769109
MPN:
CLA5E1200PZ-TRL
Unit Price (€ / pc.)
2.7132 € *
Standard delivery time from the manufacturer is: 37 Weeks
Single thyristor, CLA5E1200PZ-TRL, Littelfuse
Thyristor for line frequency with planar passivated chip and long-term stability.
Applications
- Softstart AC motor control
- DC Motor control
- Power converter
- Lighting and temperature control
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Gate trigger current | 30 mA | |
| Gate trigger voltage | 1.8 V | |
| Enclosure | TO-263AB | |
| Voltage V RRM (peak reverse voltage) | 1200 V | |
| Voltage slew rates dV/dt | 500 V/s | |
| Assembly | SMD | |
| Max. current | 5 A | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Version | thyristor | |
| Number of pins | 2 | |
| max. holding current | 30 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85413000 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
