CLA20EF1200PZ-TRL | Littelfuse

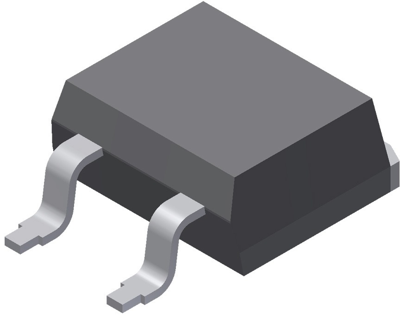

Thyristor, 1200 V (RRM), TO-263, Littelfuse CLA20EF1200PZ-TRL
Order No.: 74P0023
EAN: 4099891768881
MPN:
CLA20EF1200PZ-TRL
Unit Price (€ / pc.)
3.1535 € *
Standard delivery time from the manufacturer is: 52 Weeks
Thyristor, CLA20EF1200PZ-TRL, Littelfuse
Single reverse conducting thyristor, a planar passivated chip with an integrated free wheeling diode and long-term stability, for fast turn-on switching.
Features
- Industry standard outline
- RoHS compliant
- Epoxy meets UL 94V-0
Applications
- Ignition for HD lamps
- Capacity discharge
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Gate trigger current | 20 mA | |
| Gate trigger voltage | 1.3 V | |
| Enclosure | TO-263 | |
| Voltage V RRM (peak reverse voltage) | 1200 V | |
| Voltage slew rates dV/dt | 500 V/s | |
| Assembly | SMD | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Version | thyristor | |
| Number of pins | 3 | |
| max. holding current | 25 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85413000 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
