CLA16E800PN | Littelfuse

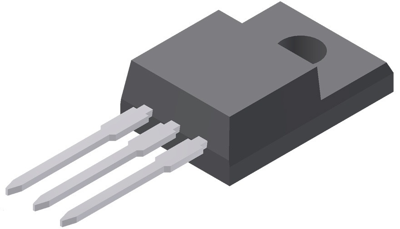

Thyristor, 800 V (RRM), TO-220ABFP, Littelfuse CLA16E800PN
Order No.: 74P0021
EAN: 4099891768867
MPN:
CLA16E800PN
Unit Price (€ / pc.)
1.9635 € *
Standard delivery time from the manufacturer is: 21 Weeks
Thyristor, CLA16E800PN, Littelfuse
Single thyristor, a planar passivated chip for line frequency with long-term stability.
Features
- Isolation voltage: 2500 V
- Industry standard outline
- RoHS compliant
- Epoxy meets UL 94V-0
- Soldering pins for PCB mounting
- Base plate: Plastic overmolded tab
- Reduced weight
Applications
- Line rectifying 50/60 Hz
- Softstart AC motor control
- DC motor control
- Power converter
- AC power control
- Lighting and temperature control
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Gate trigger current | 30 mA | |
| Gate trigger voltage | 1.3 V | |
| Enclosure | TO-220ABFP | |
| Voltage V RRM (peak reverse voltage) | 800 V | |
| Voltage slew rates dV/dt | 500 V/s | |
| Assembly | THT | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Version | thyristor | |
| Number of pins | 3 | |
| max. holding current | 60 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85413000 |
| Country of origin | KR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
