2N6565 | Littelfuse

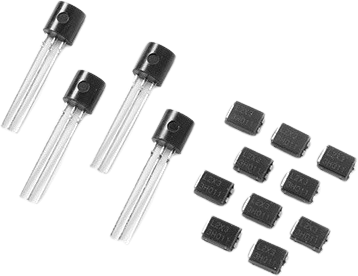

SCR, 400 V (RRM), TO-92, Littelfuse 2N6565
Order No.: 74P0007
EAN: 4099891768720
MPN:
2N6565
Unit Price (€ / pc.)
0.5831 € *
Standard delivery time from the manufacturer is: 15 Weeks
Thyristor, 2N6565, Littelfuse
Excellent unidirectional switch for phase control applications such as heating and motor speed controls. Sensitive gate SCRs are easily triggered with microAmps of current as furnished by sense coils, proximity switches, and microprocessors.
Features
- RoHS compliant
- Glass - passivated junctions
Applications
- Typical applications are capacitive discharge systems for strobe lights and gas engine ignition. Also controls for power tools, home/brown goods and white goods appliances
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | SCR | |
| Voltage slew rates dV/dt | 30 V/s | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 110 °C | |
| Gate trigger current | 0.2 mA | |
| Number of pins | 3 | |
| Voltage V RRM (peak reverse voltage) | 400 V | |
| Enclosure | TO-92 | |
| Rated current | 0.8 A | |
| Gate trigger voltage | 0.8 V | |
| Assembly | THT | |
| max. holding current | 5 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85413000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
