PLA172P | Littelfuse
Solid state relay, 800 VDC, 100 mA, PCB mounting, PLA172P
Order No.: 75P2179
EAN: 4099891890445
MPN:
PLA172P
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
4.3911 € *
Standard delivery time from the manufacturer is: 23 Weeks

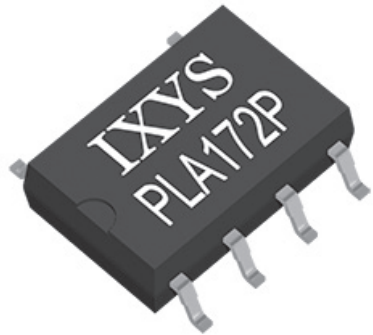

Relay, PLA172P, LITTELFUSE
A single-pole, normally open solid state relay, rated for operation up to 105 ºC, that uses optically coupled MOSFET technology to provide an enhanced input to output isolation of 5000 Vrms. The unique device pinout provides more than 6.8 mm of pad-to-pad separation between the high-voltage output pins. Control of the optically coupled output is done by the input infrared LED. It is designed to replace electromechanical relays, and provides bounce-free switching in a compact, surface-mount package.
Features
- No EMI/RFI generation
- Flammability rating UL 94 V-0
Applications
- Instrumentation
- Industrial controls
- Multiplexers
- Data acquisition
- Electronic switching
- I/O subsystems
- Meters
- Medical equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 100 mA | |
| Voltage | 800 VDC | |
| Voltage V RRM (peak reverse voltage) | 5 V | |
| Assembly | PCB mounting | |
| LED display | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414900 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
