LCA710 | Littelfuse

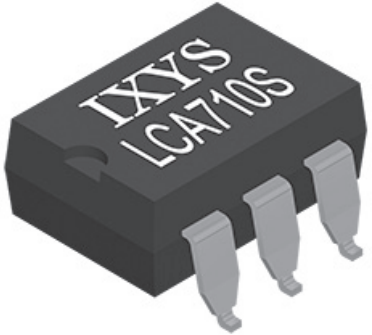

Solid state relay, 60 VDC, 1 A, PCB mounting, LCA710
Order No.: 75P2069
EAN: 4099891889340
MPN:
LCA710
Unit Price (€ / pc.)
4.3316 € *
Available in 4 Days: 600 pcs. - if ordered today
Relay, LCA710, LITTELFUSE
A normally open solid state relay featuring low on-resistance and high current handling capability. It uses optically coupled MOSFET technology to provide 3750 Vrms of input to output isolation. Its optically coupled outputs, which use the patented OptoMOS architecture, are controlled by a highly efficient infrared LED. It can be used to replace mechanical relays, and offers the superior reliability associated with semiconductor devices. Because it has no moving parts, it can offer faster, bounce-free switching.
Features
- Low drive power requirements
- Greater reliability than electromechanical relays
- No EMI/RFI generation
- Small 6-pin package
- Flammability rating UL 94 V-0
Applications
- Instrumentation
- Multiplexers
- Data acquisition
- Electronic switching
- I/O subsystems
- Meters
- Medical equipment
- Security
- Industrial controls
Technical specifications
| LED display | Yes | |
| Voltage V RRM (peak reverse voltage) | 5 V | |
| Voltage | 60 VDC | |
| Assembly | PCB mounting | |
| Rated current | 1 A |
Download
Logistics
| Customs tariff number | 85414200 |
| Country of origin | PH |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
