LCA127LSTR | Littelfuse

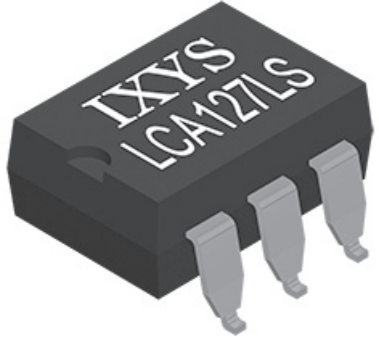

Solid state relay, LCA127LSTRAH
Order No.: 75P2057
EAN: 4099891889227
MPN:
LCA127LSTR
Unit Price (€ / pc.)
2.8798 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Relay, LCA127LSTR, LITTELFUSE
A current-limiting, normally open solid state relay featuring low on-resistance, which uses optically coupled MOSFET technology to provide 3750 Vrms of input to output isolation. Its optically coupled outputs, which use the patented OptoMOS architecture, are controlled by a highly efficient infrared LED. It can be used to replace mechanical relays, and offers the superior reliability associated with semiconductor devices. Because it has no moving parts, it offers faster, bounce-free switching.
Features
- Low drive power requirements
- Greater reliability than electromechanical relays
- FCC compatible
- VDE compatible
- No EMI/RFI generation
- Small 6-pin package
- Flammability rating UL 94 V-0
Applications
- Telecom switching
- Tip/ring circuits
- Modem switching
- Hook switch
- Dial pulsing
- Ground start
- Ringing injection
- Instrumentation
- Multiplexers
- Data acquisition
- Electronic switching
- I/O subsystems
- Meters
- Medical equipment
- Security
- Industrial controls
Technical specifications
| LED display | Yes | |
| Assembly | PCB mounting | |
| Rated current | 170 mA | |
| Voltage V RRM (peak reverse voltage) | 5 V | |
| Voltage | 250 VDC |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85414900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
