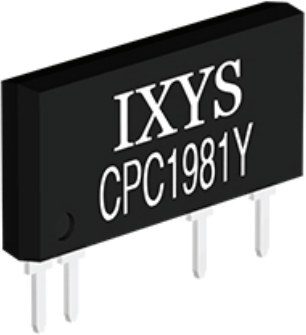

CPC1981Y | Littelfuse
Solid state relay, 1000 VDC, 180 mA, PCB mounting, CPC1981Y
Order No.: 75P1955
EAN: 4099891888206
MPN:
CPC1981Y
Unit Price (€ / pc.)
3.6176 € *
Standard delivery time from the manufacturer is: 24 Weeks
Power relay, CPC1981Y, LITTELFUSE
A normally open solid state relay with IXYS integrated circuits that brings OptoMOS technology, reliability and compact size. It employs optically coupled MOSFET technology to provide 2500 Vrms of input to output isolation. The optically coupled outputs, which use the patented OptoMOS architecture, are controlled by a highly efficient infrared LED. The combination of low on-resistance and high load current handling capabilities makes the relay suitable for a variety of high-performance switching applications.
Features
- Power SIP package
- High reliability
- Low drive power requirements
- No EMI/RFI generation
- Flammability rating UL 94 V-0
Applications
- Industrial controls
- Motor control
- Medical equipment - patient/equipment isolation
- Instrumentation
- Multiplexers
- Data acquisition
- Electronic switching
- I/O subsystems
- Meters
- IC equipment
- Home appliances
Technical specifications
| LED display | Yes | |
| Assembly | PCB mounting | |
| Rated current | 180 mA | |
| Voltage | 1000 VDC | |
| Voltage V RRM (peak reverse voltage) | 5 V |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85414900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
