55075-00-02-A | Littelfuse

Hall sensor, 4.75-25.2 V, 55075-00-02-A, -40 to 125 °C, 55075-00-02-A

Order No.: 28G730
MPN:
55075-00-02-A

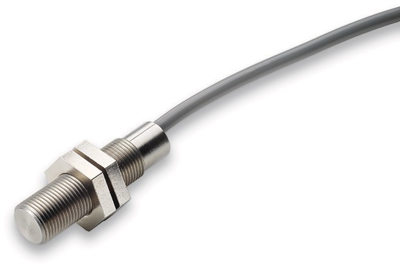

55075-00-02-A Littelfuse Sensor ICs
Image may differ
Unit Price (€ / pc.)
43.6968 € *
Standard delivery time from the manufacturer is: 61 Weeks
Total Price:
43.70 € *
Price list
Quantity
Price per unit*
1 pcs.
43.6968 €
25 pcs.
40.4600 €
100 pcs.
37.2232 €
*incl. VAT plus shipping costs
Subject to prior sale

Geartooth Speed Sensor, 55075-00-02-A, Littelfuse

The 55075 is a robust stainless steel hall effect barrel sensor with an M12 x 1mm pitch thread, 46mm (1.810”) long primarily for geartooth speed sensing. It protects against severe and automotive environments and is capable of switching up to 27Vdc and 25mA. It is available as three-wire (voltage output) version with a range of sensitivity, cable length and connector options. It is ideally suited to wheel, transmission and cam shaft speed sensing, geartooth sensor, rotary encoders, industrial, commercial, and automotive applications.

Features

  • Rotary position gear tooth sensor
  • Stainless steel M12 threaded barrel
  • Electronic protection against severe and automotive environments
  • Self-adjusting magnetic range
  • Three-wire (voltage output) sensor
  • Integral EMC protection
  • Integral short-circuit/reverse voltage protection

Applications

  • Geartooth sensor
  • Camshaft sensor
  • Linear encoder
  • Rotary encoder
Technical specifications
Filter Property Value
Assembly cable assembly
Voltage 4.75-25.2 V
max. operating temperature 125 °C
Version hall effect sensor
min. operating temperature -40 °C
Logistics
Property Value
Country of origin US
Customs tariff number 85365080
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
