DSEP12-12AZ-TUB | Littelfuse

High performance fast recovery diode, 1200 V (RRM), 12 A, TO-263AB, DSEP12-12AZ-TUB

Order No.: 74P1422
EAN: 4099891782870
MPN:
DSEP12-12AZ-TUB
DSEP12-12AZ-TUB Littelfuse Schottky Diodes

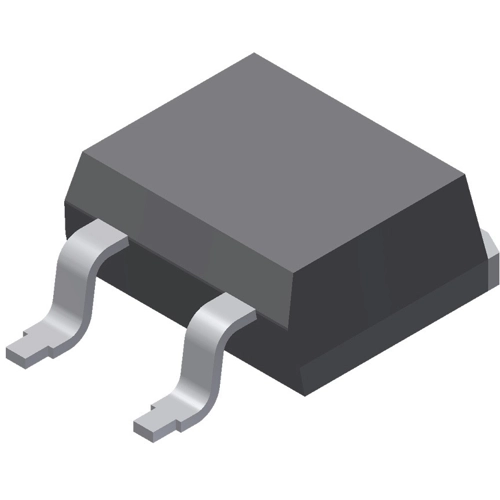

Image may differ
Unit Price (€ / pc.)
2.4038 € *
Available in 4 Days: 8,000 pcs. - if ordered today
Total Price:
3,365.32 € *
*incl. VAT plus shipping costs
Subject to prior sale
1400 pcs.
2.4038 €

Recovery diode, DSEP12-12AZ-TUB, Littelfuse

High performance fast recovery diode with soft reverse recovery for low EMI/RFI, very low leakage current, and avalanche voltage rating for reliable operation.

Features

  • Planar passivated chip
  • Very short recovery time
  • Improved thermal behavior
  • Very low Irm value
  • Very soft recovery behaviour
  • Low Irm reduces power dissipation within the diode
  • Low Irm reduces turn-on loss in the commutating switch
  • Industry standard outline
  • RoHS compliant
  • Epoxy meets UL 94 V-0

Applications

  • Antiparallel diode for high frequency switching devices
  • Antisaturation diode
  • Snubber diode
  • Free wheeling diode
  • Rectifiers in switch mode power supplies (SMPS)
  • Uninterruptible power supplies (UPS)
Technical specifications
Filter Property Value
Forward Current 12 A
Junction temperature (max.) 175 °C
Capacity 5 pF
Assembly SMD
Enclosure TO-263AB
Number of diodes 1
Junction temperature (min.) -55 °C
Voltage V RRM (peak reverse voltage) 1200 V
max. operating temperature 150 °C
min. operating temperature -55 °C
Version high performance fast recovery diode
Logistics
Property Value
Country of origin PH
Customs tariff number 85411000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
