DSEK60-02AR | Littelfuse

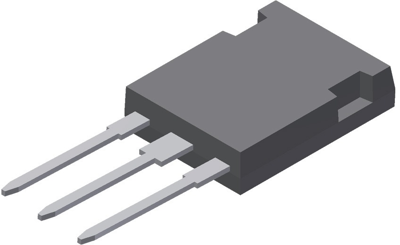

Fast recovery epitaxial diode, 200 V (RRM), 30 A, ISOPLUS247, DSEK60-02AR
Unit Price (€ / pc.)
6.6759 € *
Standard delivery time from the manufacturer is: 31 Weeks
Recovery diode, DSEK60-02AR, Littelfuse
Fast recovery epitaxial diode with an isolation voltage of 3600 V, soft reverse recovery for low EMI/RFI, low leakage current, and avalanche voltage rating for reliable operation.
Features
- Planar passivated chip
- Very short recovery time
- Improved thermal behavior
- Very low Irm value
- Very soft recovery behaviour
- Low Irm reduces power dissipation within the diode
- Low Irm reduces turn-on loss in the commutating switch
- Industry standard outline
- RoHS compliant
- Epoxy meets UL 94 V-0
- Soldering pins for PCB mounting
- Backside: DCB ceramic
- Reduced weight
- Advanced power cycling
Applications
- Antiparallel diode for high frequency switching devices
- Antisaturation diode
- Snubber diode
- Free wheeling diode
- Rectifiers in switch mode power supplies (SMPS)
- Uninterruptible power supplies (UPS)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | fast recovery epitaxial diode | |
| Assembly | THT | |
| Junction temperature (min.) | -40 °C | |
| Capacity | 77 pF | |
| Enclosure | ISOPLUS247 | |
| min. operating temperature | -40 °C | |
| Junction temperature (max.) | 150 °C | |
| max. operating temperature | 125 °C | |
| Forward Current | 30 A | |
| Voltage V RRM (peak reverse voltage) | 200 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
