RF1350-000 | Littelfuse
PTC fuse, resettable, SMD 1210, 30 V (DC), 10 A, 150 mA (trip), 50 mA (hold), RF1350-000
Unit Price (€ / pc.)
0.3332 € *
Standard delivery time from the manufacturer is: 11 Weeks

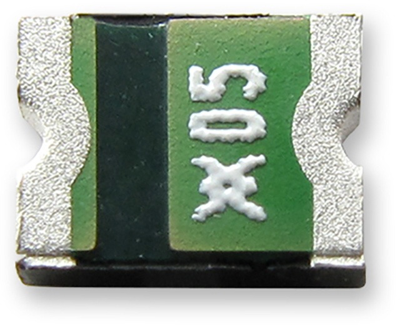

PTC fuse, RF1350-000, LITTELFUSE
The resettable fuse provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.
Features
- Low resistance
- Small 1210 footprint
- Fast time-to-trip
- RoHS complaint, lead-free and halogen-free
Applications
- Computer
- Portable electronics
- Multimedia
- Game machines
- Telephone and broadband
- Automotive
- Industrial controls
- Battery
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 30 V | |
| Trigger current | 150 mA | |
| Design | SMD 1210 | |
| Rated current | 10 A | |
| max. holding current | 50 mA | |
| Activation time | 1.5 s |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
