1210L050/30WR | Littelfuse
PTC fuse, self-resetting, SMD 1210, 30 V (DC), 40 A, 1 A (trip), 500 mA (hold), 1210L050/30WR
Unit Price (€ / pc.)
0.7021 € *
Standard delivery time from the manufacturer is: 13 Weeks

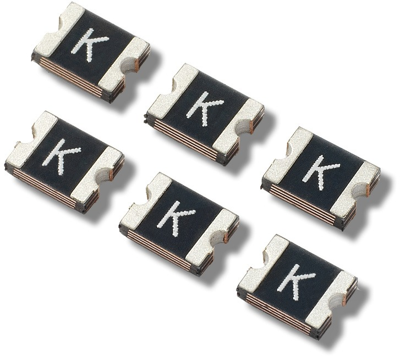

PTC fuse, 1210L050/30WR, LITTELFUSE
The surface-mount resettable PPTC provides overcurrent protection for applications where space is at a premium and resettable protection is desired.
Features
- RoHS compliant, lead-free and halogen-free
- Fast response to fault currents
- Compact design saves board space
- Low resistance
- Low profile
- Compatible with high temperature solders
Applications
- USB peripherals
- Disk drives
- CD-ROMs
- PC motherboards - plug and play protection
- Mobile phones - battery and port protection
- PDAs/digital cameras
- Game console port protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 30 V | |
| Trigger current | 1 A | |
| Design | SMD 1210 | |
| Rated current | 40 A | |
| max. holding current | 500 mA | |
| Activation time | 150 ms |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85332900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
