HE3621A1250 | Littelfuse

Reed relay, 12 V (DC), 1 Form A (N/O), SIP, 10 W, with diode, shielded, HE3621A1250

Order No.: 75P1797
EAN: 4099891886622
MPN:
HE3621A1250
Series: HE3600
HE3621A1250 Littelfuse Reed Relays

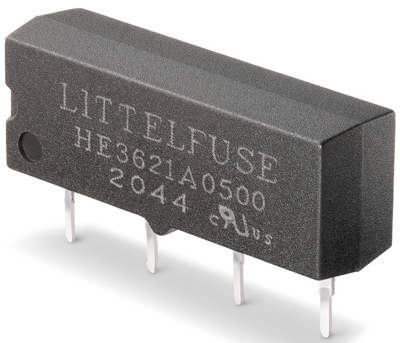

Image may differ
Unit Price (€ / pc.)
2.4514 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Total Price:
19,768.09 € *
*incl. VAT plus shipping costs
**Subject to prior sale
8064 pcs.
2.4514 €

Reed relay, HE3621A1250, LITTELFUSE

Miniature reed relay in a single-in-line SIL package with a normally open contact, switching up to 200 VDC at 10 W.

Features

  • External magnetic shield
  • Diode suppression
  • Sub-miniature size and single-in-line configuration allows very high packing densities, minimizing space and cost
  • Lower coil power consumption than electromechanical devices
  • Hermetically sealed switching contacts are immune to their environment
  • Transfer molded package gives maximum component protection
  • RoHS compliant
  • UL recognized to UL 508 as an industrial control switch

Applications

  • Security systems
  • Telecom equipment
  • Process control systems
  • Automatic test equipment
  • Instrumentation
Technical specifications
Switching Voltage (AC) 140 V
Breaking capacity 10 W
Grid 5.08 mm
switching current 500 mA
Version with diode, shielded
Design SIP
Switching Voltage (DC) 200 V
Coil voltage (DC) 12 V
Connection THT
Contact type 1 Form A (N/O)
Coil resistance 1 kΩ
Logistics
Country of origin CN
Customs tariff number 85364900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
