HE3321A0400 | Littelfuse

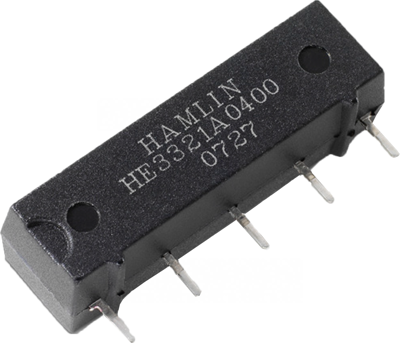

Reed relay, 5 V (DC), 1 Form A (N/O), SIP, 10 W, HE3321A0400
Unit Price (€ / pc.)
2.1539 € *
Standard delivery time from the manufacturer is: 27 Weeks
Miniature reed relays series HE3300, type Hamlin HE3321.
SiL package; Contact type: 1 x NO or 1 x CO. Contact rating: max. 10 W (1 x NO), 5.0 W (1 x CO). Switching voltage: max. 200 VDC (1 x NO), 175 VDC (1 x CO). Switching current: max. 0.5 A (1 x NO), 0.25 A (1 x CO). On-state current: max. 1.2 A (1 x NO), 1.5 A (1 x CO). Reverse voltage contacts/coil: min. 2500 VAC. Contact resistance: max. 150 mohm (1 x NO), 200 mohm (1 x changeover). Response/release time: max. 1.0/1.0 ms (1 x NO), 3.0/3.0 ms (1 x changeover). Operating temperatures: –40 to +85 °C.
With 1 x NO contact.
Technical attributes (type, rated coil voltage, coil resistance (±10 %)): HE3321A0400, 5.0 VDC, 500 ohm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil resistance | 500 Ω | |
| Switching Voltage (DC) | 200 V | |
| Contact type | 1 Form A (N/O) | |
| Connection | PCB connection | |
| switching current | 500 mA | |
| Design | SIP | |
| Breaking capacity | 10 W | |
| Coil voltage (DC) | 5 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bar with 20 pieces |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
