MDD312-20N1 | Littelfuse

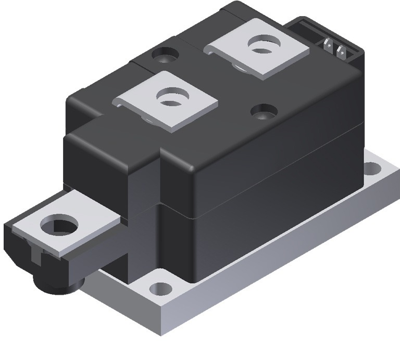

Rectifier module, TO-240AA, MDD312-20N1
Unit Price (€ / pc.)
158.4961 € *
Standard delivery time from the manufacturer is: 16 Weeks
Diode, MDD312-20N1, LITTELFUSE
A high voltage phase leg with an isolation voltage of 4800 V, advanced power cycling, very low forward voltage drop, very low leakage current, and copper base plate with internally DCB isolation.
Features
- Package with DCB ceramic
- Improved temperature and power cycling
- Planar passivated chip
- Industry standard outline
- RoHS compliant
Applications
- Diode for main rectification
- For single and three phase bridge configurations
- Supplies for DC power equipment
- Input rectifiers for PWM inverter
- Battery DC power supplies
- Field supply for DC motors
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | TO-240AA | |
| Number of diodes | 2 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Version | rectifier module | |
| Rated blocking voltage | 2000 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
