MDD175-34N1 | Littelfuse

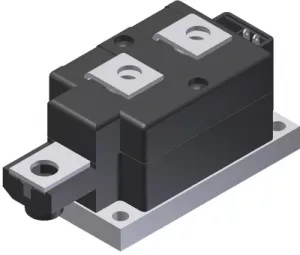

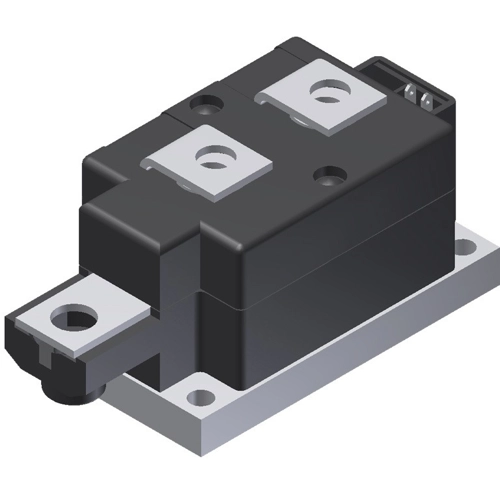

Rectifier module, TO-240AA, MDD175-34N1
Order No.: 74P1541
EAN: 4099891784065
MPN:
MDD175-34N1
Unit Price (€ / pc.)
267.0717 € *
Standard delivery time from the manufacturer is: 16 Weeks
Diode, MDD175-34N1, LITTELFUSE
A high voltage phase leg with an isolation voltage of 4800 V, advanced power cycling, very low forward voltage drop, very low leakage current, and copper base plate with internally DCB isolation.
Features
- Planar passivated chip
- Improved thermal behaviour
- Industry standard outline
- RoHS compliant
Applications
- Diode for main rectification
- For single and three phase bridge configurations
- Supplies for DC power equipment
- Input rectifiers for PWM inverter
- Battery DC power supplies
- Field supply for DC motors
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated blocking voltage | 3400 V | |
| Enclosure | TO-240AA | |
| Number of diodes | 2 | |
| Version | rectifier module | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
