DSP8-12S-TRL | Littelfuse

Rectifier diode, 8 A, TO-263AB, DSP8-12S-TRL

Order No.: 74P3056
EAN: 4099891799212
MPN:
DSP8-12S-TRL
Series: DSP
DSP8-12S-TRL Littelfuse Rectifier Diodes

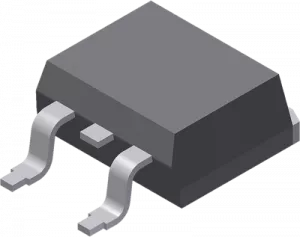

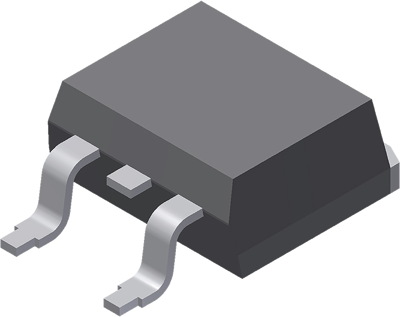

Image may differ
Unit Price (€ / pc.)
2.7965 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
2,237.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
800 pcs.
2.7965 €

Single diode, DSP8-12S-TRL, Littelfuse

The DSP8-12S-TRL is a single diode for main rectification, single and three phase bridge configurations.

Features

  • Planar passivated chips
  • Very low leakage current
  • Very low forward voltage drop
  • Improved thermal behaviour
Technical specifications
Filter Property Value
Pulse power loss 100 W
Version standard recovery diode
Assembly SMD
Junction temperature (min.) -55 °C
Enclosure TO-263AB
min. operating temperature -55 °C
Junction temperature (max.) 175 °C
max. operating temperature 150 °C
Forward Current 8 A
Voltage V RRM (peak reverse voltage) 1200 V
Logistics
Property Value
Customs tariff number 85411000
Country of origin PH
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
