DSP8-08AS-TRL | Littelfuse

Rectifier diode, 8 A, TO-263AB, DSP8-08AS-TRL

Order No.: 74P3049
EAN: 4099891799144
MPN:
DSP8-08AS-TRL

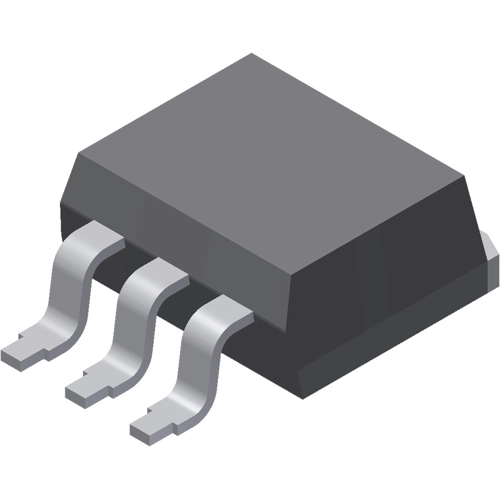

DSP8-08AS-TRL Littelfuse Rectifier Diodes
Image may differ
Unit Price (€ / pc.)
2.7489 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
2,199.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
800 pcs.
2.7489 €

Single diode, DSP8-08AS-TRL, Littelfuse

The DSP8-08AS-TRL is a single diode for main rectification, single and three phase bridge configurations.

Features

  • Planar passivated chips
  • Very low leakage current
  • Very low forward voltage drop
  • Improved thermal behaviour
Technical specifications
Assembly SMD
Enclosure TO-263AB
Pulse power loss 100 W
Forward Current 8 A
Number of diodes 2
Version standard recovery diode
Junction temperature (max.) 175 °C
min. operating temperature -55 °C
Voltage V RRM (peak reverse voltage) 800 V
max. operating temperature 150 °C
Junction temperature (min.) -55 °C
Logistics
Country of origin PH
Customs tariff number 85411000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
