DSP8-08A | Littelfuse

Rectifier diode, 8 A, TO-220AB, DSP8-08A

Order No.: 74P3048
EAN: 4099891799137
MPN:
DSP8-08A
DSP8-08A Littelfuse Rectifier Diodes

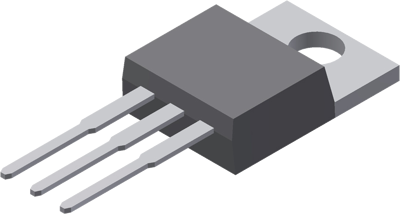

Image may differ
Unit Price (€ / pc.)
1.8802 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
94.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
1.8802 €

Phase leg, DSP8-08A, Littelfuse

The DSP8-08A is a phase leg diode for main rectification, single and three phase bridge configurations.

Features

  • Planar passivated chips
  • Very low leakage current
  • Very low forward voltage drop
  • Improved thermal behaviour
Technical specifications
Assembly THT
Enclosure TO-220AB
Pulse power loss 100 W
Forward Current 8 A
Number of diodes 2
Version standard recovery diode
Junction temperature (max.) 175 °C
min. operating temperature -55 °C
Voltage V RRM (peak reverse voltage) 800 V
max. operating temperature 150 °C
Junction temperature (min.) -55 °C
Logistics
Country of origin KR
Customs tariff number 85411000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
