DSP45-18A | Littelfuse

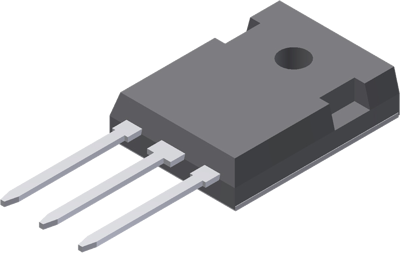

Rectifier diode, 45 A, TO-247AD, DSP45-18A
Order No.: 74P3047
EAN: 4099891799120
MPN:
DSP45-18A
Unit Price (€ / pc.)
5.5097 € *
Standard delivery time from the manufacturer is: 16 Weeks
Single diode, DSP45-18A, Littelfuse
The DSP45-18A is a single diode for main rectification, single and three phase bridge configurations.
Features
- Planar passivated chips
- Very low leakage current
- Very low forward voltage drop
- Improved thermal behaviour
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | TO-247AD | |
| Pulse power loss | 270 W | |
| Forward Current | 45 A | |
| Number of diodes | 2 | |
| Version | standard recovery diode | |
| Junction temperature (max.) | 175 °C | |
| min. operating temperature | -40 °C | |
| Voltage V RRM (peak reverse voltage) | 1800 V | |
| max. operating temperature | 150 °C | |
| Junction temperature (min.) | -40 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | KR |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
