DSP45-16A | Littelfuse

Rectifier diode, 45 A, TO-247AD, DSP45-16A

Order No.: 74P3044
EAN: 4099891799090
MPN:
DSP45-16A
DSP45-16A Littelfuse Rectifier Diodes

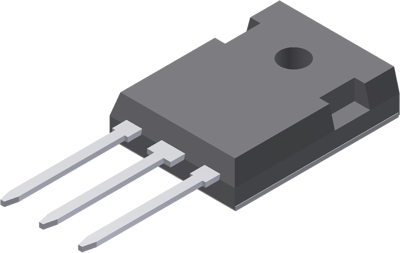

Image may differ
Unit Price (€ / pc.)
5.3669 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
1,610.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
300 pcs.
5.3669 €

Single diode, DSP45-16A, Littelfuse

The DSP45-16A is a single diode for main rectification, single and three phase bridge configurations.

Features

  • Planar passivated chips
  • Very low leakage current
  • Very low forward voltage drop
  • Improved thermal behaviour
Technical specifications
Assembly THT
Enclosure TO-247AD
Pulse power loss 270 W
Forward Current 45 A
Number of diodes 2
Version standard recovery diode
Junction temperature (max.) 175 °C
min. operating temperature -40 °C
Voltage V RRM (peak reverse voltage) 1600 V
max. operating temperature 150 °C
Junction temperature (min.) -40 °C
Logistics
Country of origin KR
Customs tariff number 85411000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
